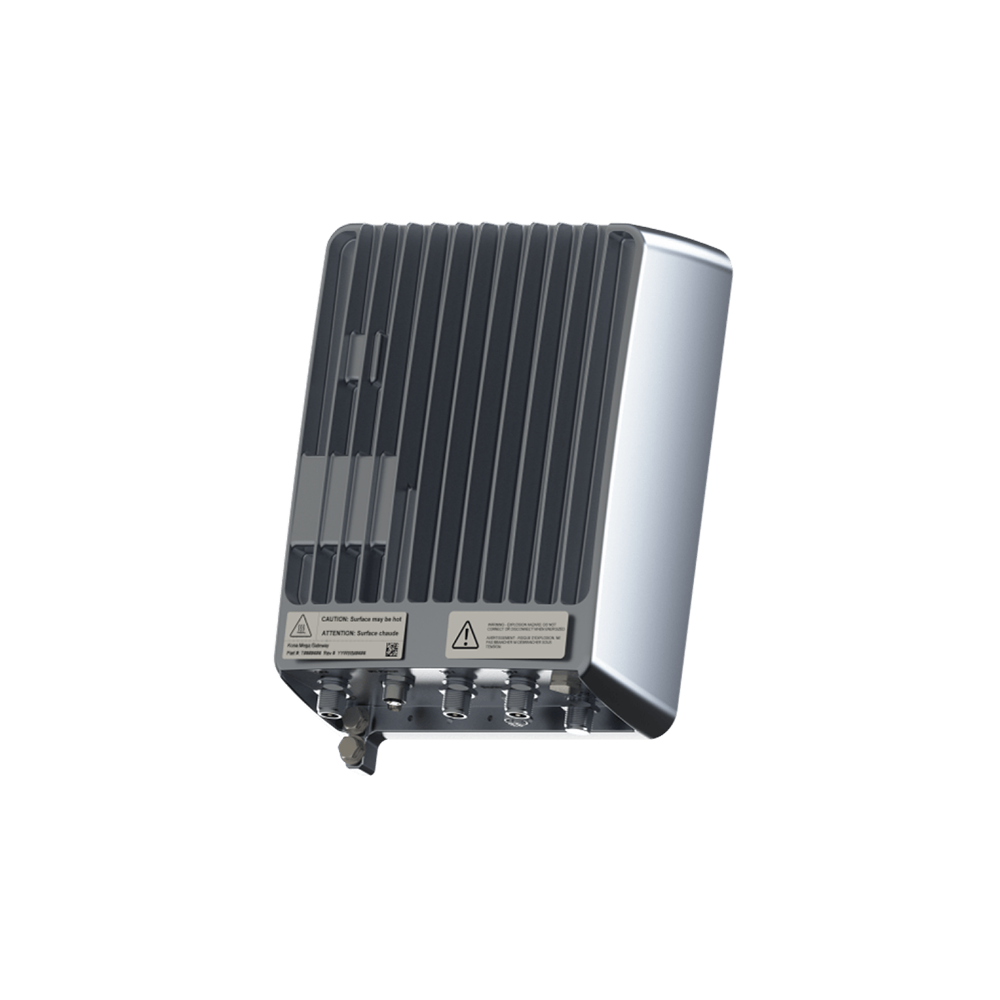

Kona Mega Ex LoRa Gateway


Available on backorder | Lead Time: 30 days

Scalable Zone 2/ATEX Rated LoRaWAN® Gateway for Extreme Outdoor Deployments

This product is currently out of stock and unavailable.


TEKTELIC’s KONA Mega Ex IoT Gateway provides network operators with a carrier grade product for the deployment of LoRaWAN® Internet of Things networks in an ATEX or Zone 2 (Class I, Division II) classified location. The Gateway enables massive scalability in a compact form factor by supporting up to 12 million messages per day. Rated IP67 and ATEX/Zone 2 certified, the gateway is designed for the most demanding outdoor installations where combustible gasses, vapours or liquids may be present.
It is ideal for public and private network operators that require Full Duplex, multiple Rx and Tx Channels, rugged industrial design and reliable LoRaWAN® gateways to maximise their network investment.

Key Features
Precise Network Synchronization (GPS)
Dual Antenna Support for Rx Diversity
Double Simultaneous Tx Channels
Frequency Duplex 72 Rx / 4 Tx (NA), Time Duplex 16 + 16 Rx / 2 + 2 Tx (EU)
High Linearity LNA/Receiver
Integrated Bandpass Filter
Integrated GPS Holdover
Up To 14 dBM Tx Power per Antenna
Geolocalization Support
Hardened Carrier Grade Enclosure
Integrated Cellular 3G/4G Modem
Copper and Optical Ethernet Backhaul
EU 868 ISM Band
Rated IP67 Enclosure

Key Product Differentiators
High availability carrier grade design with support of in-service configuration and software updates.
Excellent isolation between the Tx and Rx bands as well as out of band rejection of Cellular and Paging networks.
Day-One scalability with support of up to 12 million received messages per day.
Easy to deploy supporting different backhaul and power options.
Fully integrated with the broader eco-system of LoRa network servers and sensors.
Full duplex operation making all receive and transmit channels available simultaneously
Certified for ATEX/Zone 2 Classified Deployments

SKU: PK495992 Category: Tags: , ,
Weight 180 oz
Dimensions 10 × 12 × 6 in


LoRa Frequency Band

AS923, CN779, EU868, JP920, NA915

Please download the product datasheet from the attachment tab for the full product specs
