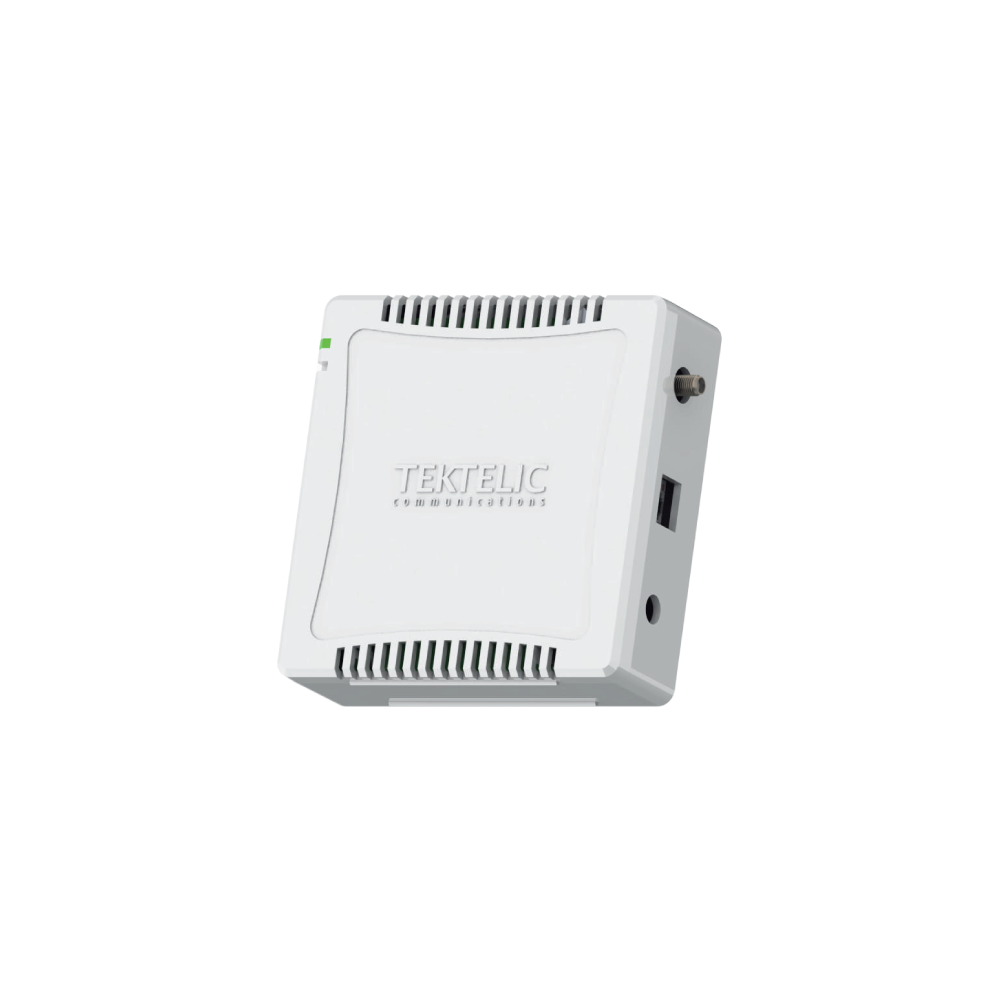

Kona Micro LoRa Gateway

Tektelic
Availability:

In stock | Lead Time: 30 days


Enterprise LoRaWAN® Gateway for Mission Critical Deployments

$353.00$436.00

Compare

The KONA Micro IoT Gateway is designed for enterprise and lightweight industrial applications that require “Always On” connectivity. Configured with an internal 3G/4G modem and a built-in battery backup, the KONA Micro IoT gateway continues to operate and transmits sensor data to the network even when the main site has lost power. Simple to configure and cost effective, it is an ideal hub for deployment of enterprise-level applications in areas where LoRaWAN® coverage is not yet readily available or for private networks where the operator requires unfettered access to the gateways regardless of their deployment location

Key Product Differentiators
Enable critical enterprise IoT applications with ‘Always On’ connectivity. Battery backup and an integrated 3G/4G modem.
Reduce set up costs with plug-n-play installation using a custom provisioned factory image.
Improve coverage and service resulting in increased IoT application adoption and customer satisfaction.
Simplify management with the KonaFT OAM tool.
Operational status indicated with multi-function LED.
Fully integrated with the broader eco-system of LoRa™ network servers and sensors.

Key Features
NA 915, EU868, AUS923, JP920 ISM Bands
Four Hour Battery Backup
Time Duplex 8 Rx / 1 Tx
Integrated Cellular 3G/4G Modem
External LoRa Antenna
Operational Status LED
Plug – n – Play Operation
Factory Image for Mass Deployment
In-Service Updates

SKU: PK841698 Category: Tags: , , ,
Weight 15 oz
Dimensions 6 × 6 × 3 in
Color

White

Brand

Tektelic

Tx Power

14 dBm to 27 dBm

Rx Sensitivity

-139.5 dBm (SF12, 293 bits/sec)

Rx Noise Figure

3.5 dB

Rx Linearity

-10 dBm

Rx Dynamic Range

70 dB Analog, 100+ dB Digital

MTBF

830,000 hours

DC Power Consumption

< 7 W

Operational Temperature

0°C to +40°C

Operational Humidity

5% to 95% Condensing

Ingress Protection

IP30

Size

115 x 115 x 40 mm

Weight

350 g (<200 g without battery)

Ethernet Backhaul

RJ-45 (10/100 BaseT)

Cellular Backhaul (3G/4G)

Optional

LoRa Antenna

SMA-RC

Power

12V / 1A Adapter

LoRa Frequency Band

AS923, CN779, EU868, JP920, NA915

Please download the product datasheet from the attachment tab for the full product specs
