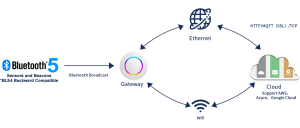

G1 IoT Gateway is Bluetooth low energy (BLE) to Wi-Fi or ETH connectivity gateway. The G1 IoT Gateway collects the data from iBeacon, Eddystone, BLE sensor, and other BLE devices, and then sends it to the local server or remote cloud server by HTTP / MQTT/ TCP protocol over Wi-Fi / Ethernet.

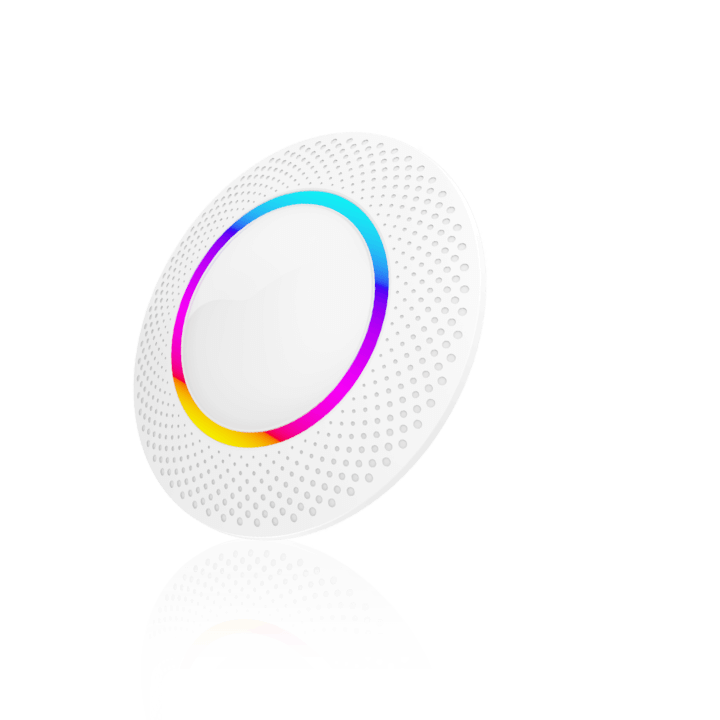

With a colorful lamp ring on the top to indicate different states, G1 can be fixed by a sticker or screws.
As a data receiver, Minew G1 performs well in asset tracking, access control management, advertisement promotion, indoor location, industrial automation, etc.
√ Higher throughput: up to 300 Bluetooth devices scanned per second with super speedy WiFi CPU & Bluetooth 5.0 SoC.
√ Higher security: WPA 2.0 enterprise encryption, 802.1x authorized; data storage even if disconnected.
√ Higher compatibility: support AWS / Azure / ARM mBed platforms.
√ Firmware upgrade: OTA available / USB disk / LAN.
Weight |
15 oz |
Dimensions |
7 × 7 × 2 in |
Brand |
Minew
|
Color |
White
|
Net Weight |
180g
|
Accessory |
1x USB cable, mental fixing and screws
|
Power Supply |
DC 5.0 (+/- 5%) Max. 5.5 Volts
|
Storage Temperature |
-40℃ to 85℃
|
Humidity |
Max 95%, non-condensing, relative humidity
|
Wireless |
IEEE 802.11b/g/n (single stream)
|
Data Rate |
IEEE 802.11b, 1-11Mbps
IEEE 802.11g, 6-54Mbps
IEEE 802.11n(2.4GHz), 7.2-72.2Mbps
|
Frequency band |
2.400 – 2.484 GHz
|
Number of selectable Subchannels |
14 channels
|
Maximum receive input level |
-10dBm(with PER < 8%@11Mbps)
-20dBm(with PER < 10%@54Mbps)
-20dBm(with PER < 10%@MCS7)
|
Minimum receive input level |
-87dBm(typ. with PER < 8%@11Mbps)
-70dBm(typ. with PER < 10%@54Mbps)
-70dBm(typ. with PER < 10%@MCS7)
|
Transmit Power |
17dBm(typical)@802.11b
11.3dBm(typical)@802.11g
8.2dBm(typical)@802.11n
|
WiFi Range |
up to 90 meters( in open space)
|
RF Power Accuracy |
+/- 4 dB
|
Receiver Sensibility |
-108dBm@250kbps, 0.1% BER
-93dBm@1Mbps, 0.1 R
|
Frequency Deviation |
+/-250 kHz @BLE
|
Scanning & concurrently process |
300 BLE packets per second
|
BLE Range |
up to 300 meters in open space
|
Connectivity |
Bluetooth LE 5, ETHERNET, WIFI
|
Please download the product datasheet from the attachment tab for the full product specs
