Kona Mega LoRa Gateway


In stock | Lead Time: 30 days

Carrier Grade, High Availability and Dependability, Feature Rich and Scalable

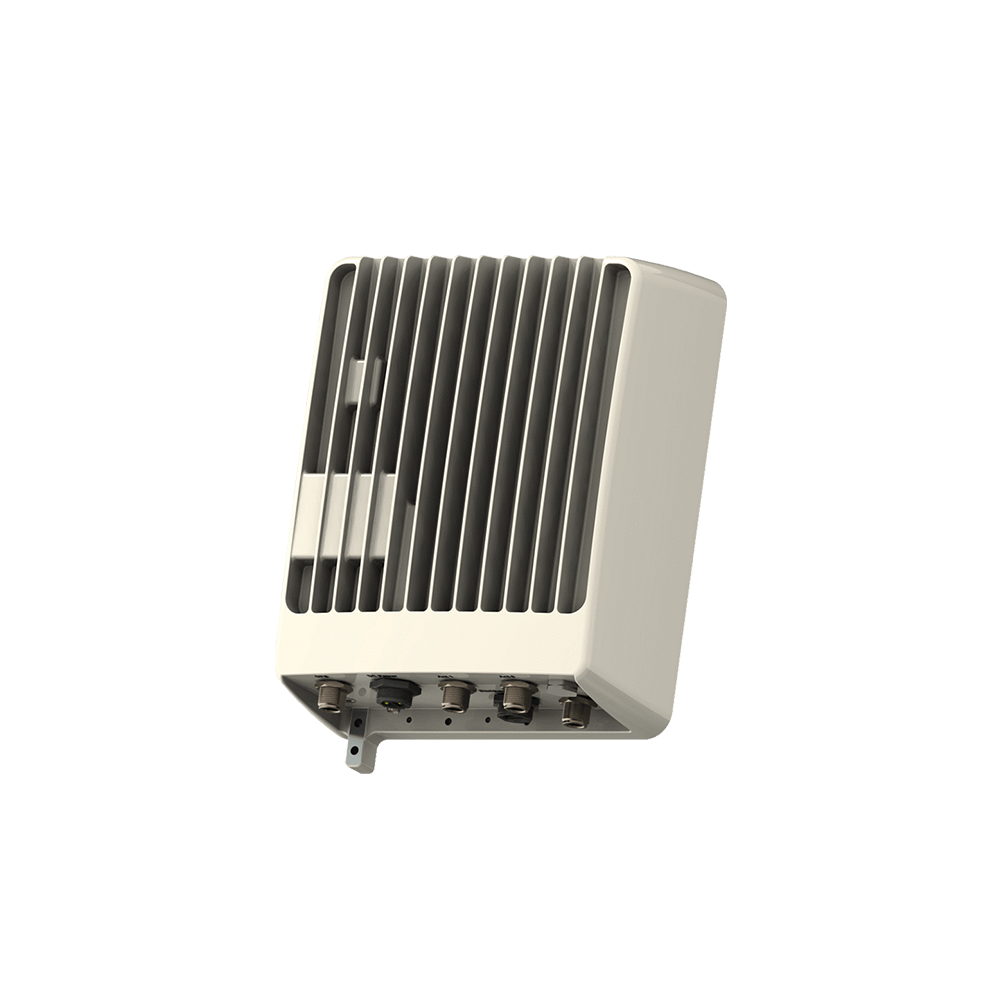

TEKTELIC’s KONA Mega IoT Gateway is a Carrier Grade, High Availability and Dependability, Feature-Rich and Scalable LoRaWAN® Gateway for operators and enterprises that require a fully-featured outdoor Gateway with built-in RF Cavity Duplexers and Filters. It supports dual LoRaWAN antennas, maximum possible Rx and Tx Channels, high performance external 3G/4G and GPS antennas and a number of other advanced features. In addition, it generates negligible RF impairments compared to any other LoRaWAN® Gateway and supports accurate TDoA Geolocation. The KONA Mega IoT Gateway supports all Global ISM bands.

Key Product Differentiators
High availability carrier grade design with support of in-service configuration and software updates.
Environmentally hardened aluminium enclosure fully tested to withstand extreme temperature conditions.
Innovative multiple antenna configuration supporting Rx diversity for 16 + 16 channels.
Excellent out of band rejection of Interference from other networks such as Cellular and Paging.
Day-One scalability supporting millions of Rx messages per day.
Fully integrated with the broader eco-system of LoRa™ network servers and sensors.

Key Features
Dual Antenna Support for Rx Diversity
Double Simultaneous Tx Channels
Frequency Duplex 72 Rx / 4 Tx (NA), Time Duplex 16 + 16 Rx / 2 + 2 Tx (EU)
High Linearity LNA/Receiver
Integrated Bandpass Filter
Precise Newtork Synchronization (GPS)
Integrated GPS Holdover
Up To 14 dBM Tx Power per Antenna
Geolocalization Support
Hardened Carrier Grade Enclosure
Integrated Cellular 3G/4G Modem
Copper and Optical Ethernet Backhaul
Rated IP67 Enclosure
EU 868 ISM Band

SKU: PK568685 Category: Tags: , ,
Weight 200 oz
Dimensions 11 × 12 × 16 in


LoRa Frequency Band

AS923, CN779, EU868, JP920, NA915

Please download the product datasheet from the attachment tab for the full product specs
